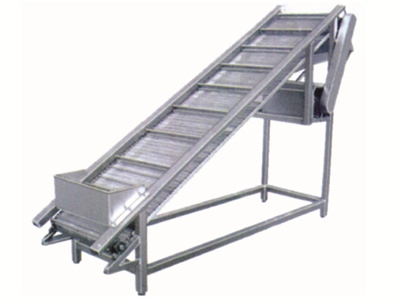

Network with elevator - aircraft machine made of stainless steel, mesh belt for the production of Taiwan-funded enterprises, economic and durable, reliable, fully in line with

National food grade standards for large particles and materials to improve after cleaning. Production capacity :1-5T / h, the size of the actual situation according to customer-made,

According to the material, the choice whether to raise, including plates, matching the motor according to the actual needs of the customer.

Mesh belt elevator with throughput, and promoted height, stable and reliable operation, long life clear strengths, its main function and parameters meet

JB3926 ---- 85 "vertical lift machine" (which is equivalent to the reference scale international scale and abroad to improve their predecessors scale), in line with the traction ring chain

MT36 ---- 80 "high-intensity ring chain Mine", the elevator for conveying powder, granular and small pieces of cut of no small grinding and abrasive materials

, Such as: coal, stone, sand, clay, minerals, etc., because traction hoist mechanism is ring chain, and therefore promised to convey high temperature materials

Material.



CZLW-II series corrugated sidewall conveyor network is widely used in ports, mining, coal, grain, concrete mixing stations, cement works

Lifting and transporting sand and other departments, coal (block), ore, grain and other bulk materials.

CZLW-II
Series corrugated sidewall conveyor mesh belt conveyor than ordinary network has the following characteristics:
(1) increase the delivery angle. Ordinary net conveyor maximum angle of only 18 °, while the corrugated wall conveyor belt can be either in the range of 0-90 °

Italian angle conveyor, saving floor space, reduce power consumption.
(2) corrugated sidewall conveyor belt and the partition wall due to the role, so that the material is not easy to Sala, a substantial increase in throughput.

The main technical parameters

Bandwidth B (mm) Inclination a ° maximum transmission length L maximum lift height H conveyor belt speed capacity Q m / s motor power kw500 ~

8000 ~ 90603010 ~ 23 ~ 30 ~ 2600.8
